XC-L85 Paper Cup Manufacturing Machine (40ml-330ml)

XC-L85 Paper Cup Machine can run 85pcs/min if the cup height lower than 87mm.And can run continuously 24 hours a day.The main transmission adopts mechanical oil supply and lubrication to improve the service life.

The machine can run 85pcs/min if the cup height lower than 87mm.And can run continuously 24 hours a day.

The main-frame of the machine is an incline.And the incline can help the cups easily drop into the plastic holes,the rate of which goes up to 99.99%.

Production speed	75-85pcs/min
Electrical requirement	7.5KW 380V 50Hz
Weight	1600KG

XC-L85 Paper Cup Manufacturing Machine (40ml-330ml)

REQUEST NOW

Description
Technical Parameters
Product Details
Components List

Description

XC-L85 vertical single-coated or double-coated paper cup machine is a kind of multi-station automatic machinery. It is the ideal equipment for producing paper test cup, market cup, advertising cup, and ice cream cup by automatic paper feeding, folding sealing, oiling, bottom punching, heating, knurling, curling, paper cup output etc continuous processes.

Advantage and improvement

1.Gear drive,more stable running,speed up and reduce the cost of maintenance.

2.100 type speed reducer is used instead 80 type.higher transmission efficiency, better parallelism, sensitivity, and precision for use.

3.Double layer sucker is used for cup fan sucked to guarantee powerful sucking and more successful.The using life is much more longer than normal sucker.

Technical Parameters

Model	XC-L85
Cup size	(D1) φ 43-85mm (H) 36-115mm (D2) φ 32-62mm (h) 4-9mm
Applicable Paper	150-250g/m² (单淋膜 single PE) 150-380g/m² (单双淋膜single PE/double PE) with ultrasonic（Optional）
Production speed	75-85pcs/min
Electrical requirement	7.5KW 380V 50Hz
Compressed air	0.4m³/min ,Air source request (double PE): 0.4-0.6 Mpa
Weight	1600KG
Wooden case dimension	240011001700mm (LWH )

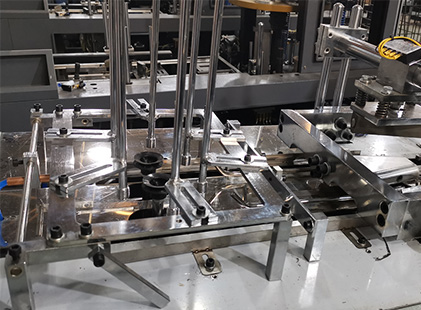

Product Details

Bottom punching

Bottom forming

Intermittently divided open cam

Automatic oil lubrication

Open cam

Metal baseboard

Two step paper feeding

Components List

No.	Description	Specification	Qty.	Brand
Electric appliance	Transducer	3G3JZ-4022	1setT	Nkonz
	Contractor	LCL-D0910M7N		ZhengTai
	Temperature Controller	XMTG-9031		Youtai
	Motor	YS7134-550W	1set	Ziguang
Machine appliance	Warm gear case	WPS100-20A (1.5KW-4PB)	1set	China- Tianjia
	Chain wheel	3 pcs ,45# 45# steel		45# steel 3-row
	Chain			China- hangzhou
	Axis	45# steal		45# steal
	Bearing	6201		China-haerbing
	Interval gear box		1set	Shandong brand
	Cam			45#
	Guide Post	CR15		Korea brand
	linear bearing	LM20UU		China – heerbin
	Cylinder	80*125		China-kaogelin
	Knurling wheel	40CR		CR12mov
	Knurling seat	CR12MOAL		CR12mov
	bottom cutter	CR12MOAL	1set	CR12mov
