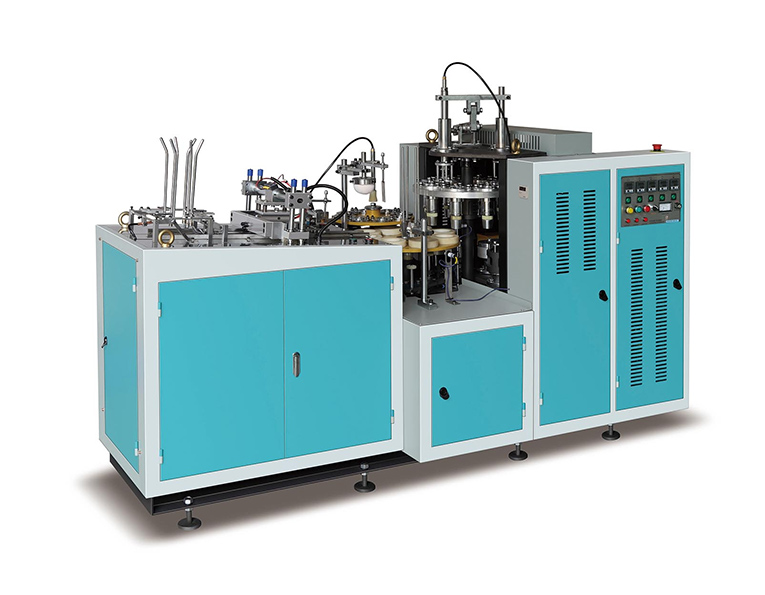

XC-L12 Disposable Cup Making Machine (40ml-330ml)

XC-L12 vertical single-coated or double-coated paper cup machine is a kind of multi-station automatic machinery.The machine sends the bottom paper cup to the cup automatically and adjusts itself because of spring.

The shape of the head is oblate,which can seal the cups easily.It is much better than that is round.

The machine sends the bottom paper cup to the cup automatically and adjusts itself because of spring.

Capacity	60-70pcs/min
Rated power	3.8KW 380V 50Hz
Weight	1400 KG

XC-L12 Disposable Cup Making Machine (40ml-330ml)

REQUEST NOW

Description
Technical Parameters
Product Details
Components List

Description

XC-L12 vertical single-coated or double-coated paper cup machine is a kind of multi-station automatic machinery. It is the ideal equipment for producing paper test cup, market cup, advertising cup, and ice cream cup by automatic paper feeding, folding sealing, oiling, bottom punching, heating, knurling, curling, paper cup output etc continuous processes.

Advantage and improvement

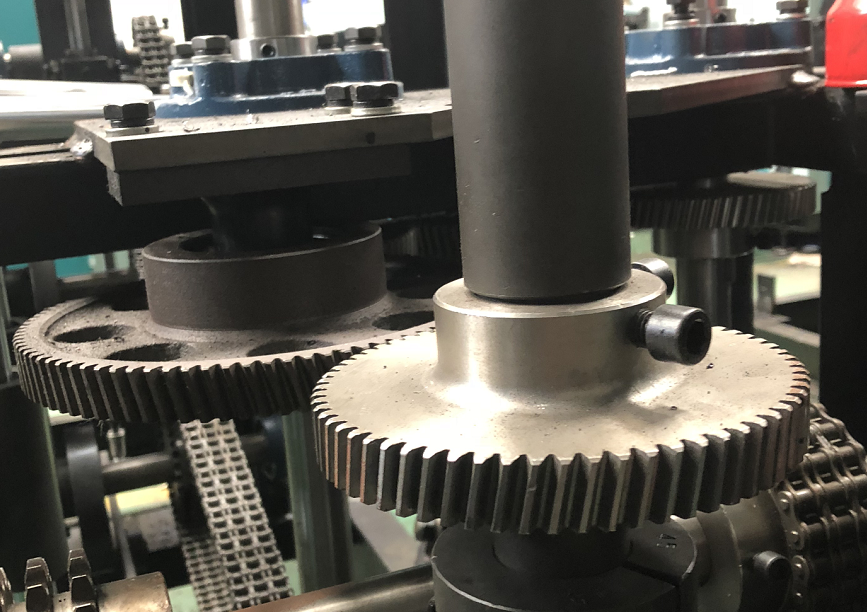

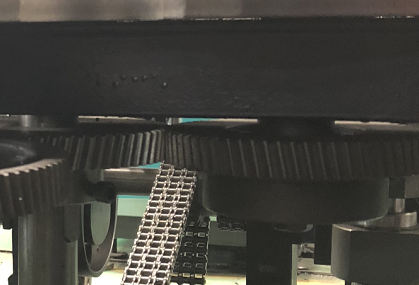

1.Gear drive,more stable running,speed up and reduce the cost of maintenance.

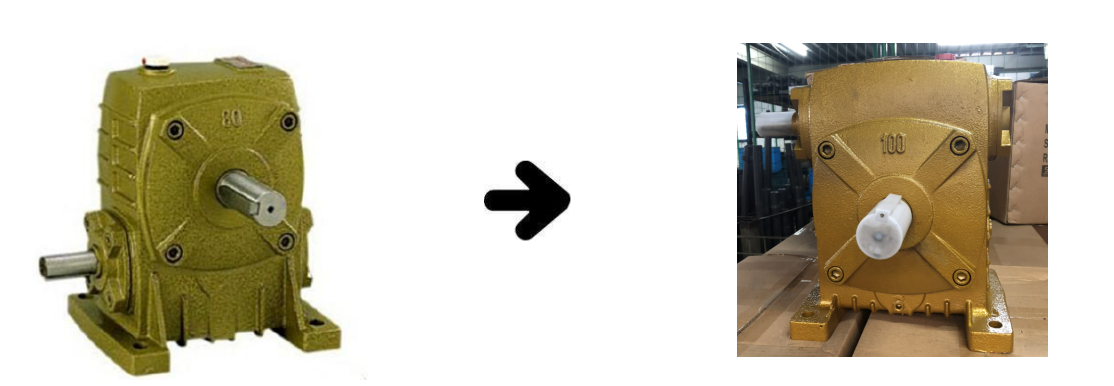

2.100 type speed reducer is used instead 80 type.higher transmission efficiency, better parallelism, sensitivity, and precision for use.

3.Double layer sucker is used for cup fan sucked to guarantee powerful sucking and more successful.The using life is much more longer than normal sucker.

Technical Parameters

Model	XC-L12

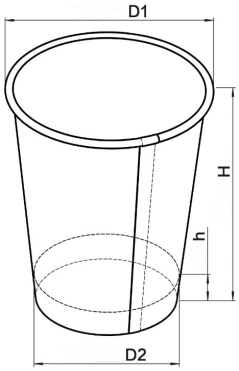

Cup size	(D1) φ43-85mm (H) 36-115mm (D2) φ 32-62mm (h) 4-9mm
Paper grammage	150-250g/m² (Single PE ) 150-380g/m² (double PE ) with ultrasonic
capacity	60-70pcs/min
Rated power	3.8KW 380V 50Hz
Compressed air	0.4m³/min ,Air source request (double PE): 0.4-0.6 Mpa
Weight	1400 KG
Wooden case dimension	240011001700mm (LWH )

Product Details

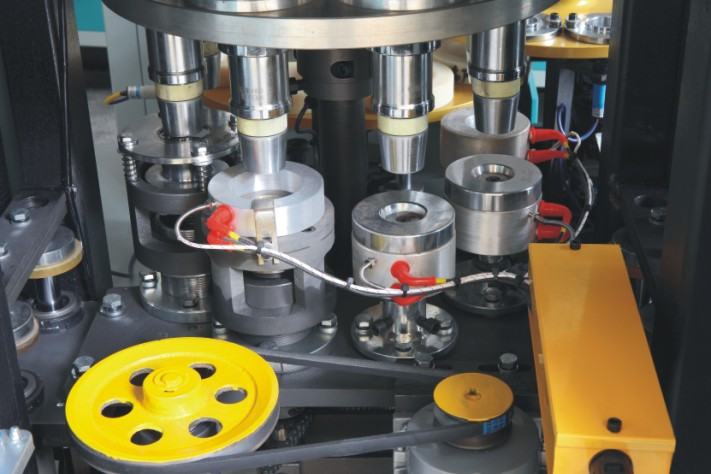

Bottom punching

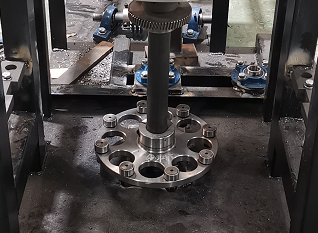

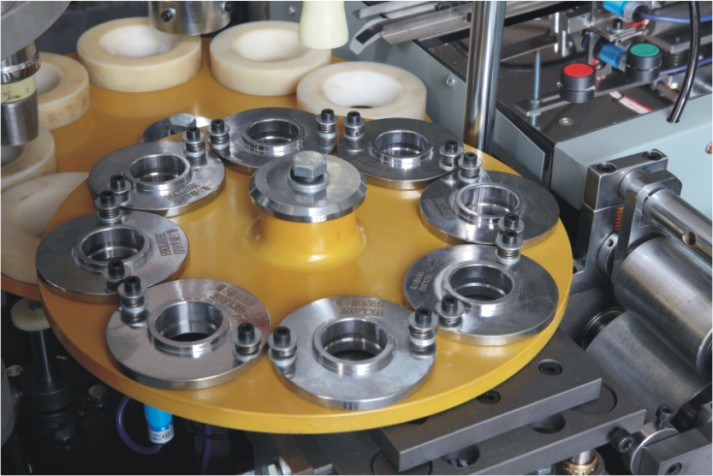

Bottom forming

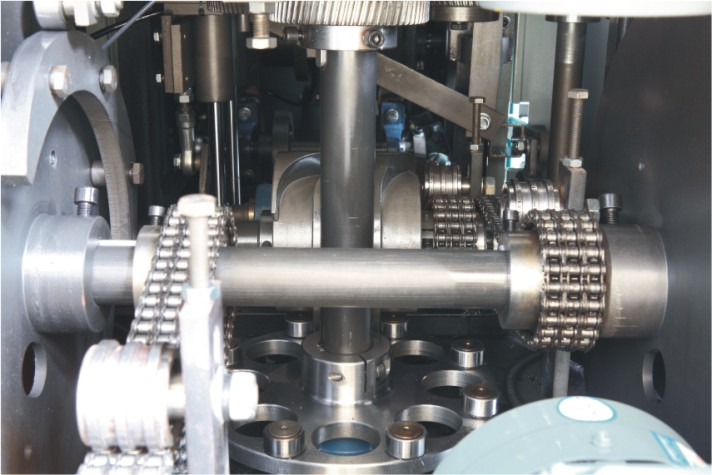

Intermittently divided open cam

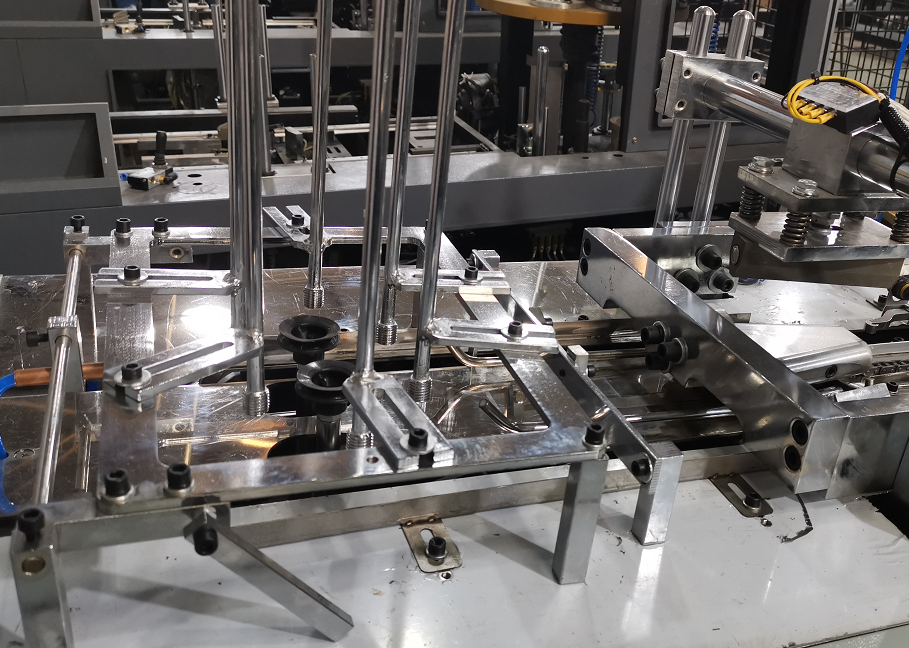

Two step paper feeding

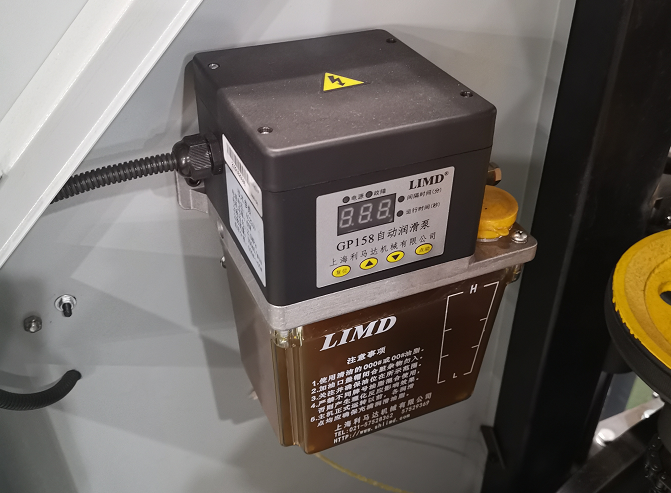

Automatic oil lubrication

Open cam

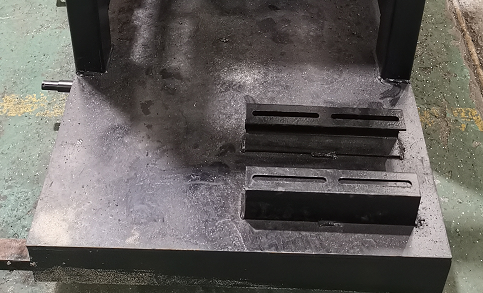

Metal baseboard

Components List

No.	Description	Specification	Qty.	Brand
Electric appliance	Transducer	3G3JZ-4022	1setT	Nkonz
	Contractor	LCL-D0910M7N		ZhengTai
	Temperature Controller	XMTG-9031		Youtai
	Motor	YS7134-550W	1set	Ziguang
Machine appliance	Warm gear case	WPS100-20A (1.5KW-4PB)	1set	China- Tianjia
	Chain wheel	3 pcs ,45# 45# steel		45# steel 3-row
	Chain			China- hangzhou
	Axis	45# steal		45# steal
	Bearing	6201		China-haerbing
	Interval gear box		1set	Shandong brand
	Cam			45#
	Guide Post	CR15		Korea brand
	linear bearing	LM20UU		China – heerbin
	Cylinder	80*125		China-kaogelin
	Knurling wheel	40CR		CR12mov
	Knurling seat	CR12MOAL		CR12mov
	bottom cutter	CR12MOAL	1set	CR12mov
