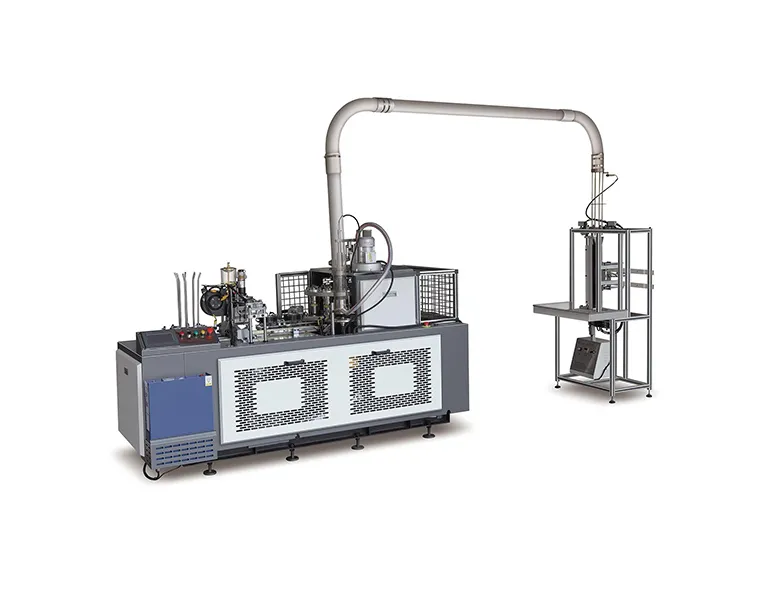

XC-D16 Paper Cup Forming Machine

XC-D16 paper cup machine is an ideal equipment for producing paper test cup, market cup, advertising cup, and ice cream cup, automatic paper feeding, folding sealing, oiling, bottom punching, knurling,curling.

Intermittent lubrication device improves the service life of the equipment.

Optional automatic counting table and paper feeding table to save labor cost.

Production speed	60-75pcs/min
Electrical requirement	8KW 380V 50Hz
Weight	1600 KG

REQUEST NOW

Description
Technical Parameters
Product Details
Components List

Description

XC-D16 vertical single-coated or double-coated paper cup machine is a kind of multi-station automatic machinery. It is the ideal equipment for producing paper test cup, market cup, advertising cup, and ice cream cup by automatic paper feeding, folding sealing, oiling, bottom punching, heating, knurling,curling, paper cup output etc continuous processes.

Technical Parameters

Model	XC-D16
Cup size	(D1) φ50-90mm (H) 45-135mm (D2) φ36-60mm (h) 4.5-9mm
Applicable Paper	150-350g/m²
Production speed	60-75pcs/min
Electrical requirement	8KW 380V 50Hz
Compressed air	0.5-0.8Mpa 0.3m³/min
Weight	1600 KG
Wooden case dimension	260011001700mm (LWH ) 11008001700mm (collect table)

Product Details

Bottom paper sending by servo

Electrical box

Folding driving system

Large cam drive system

Extend range institution

Automatic Lubrication System

Stretch bottom knife

Open type cam drive

Components List

No.	Item	Name	Brand	Remarks
1	Electric Parts	Inverter	ZC-Drive (Shanghai)
2		Ultrosonic	Evergreen(Taiwan)
3		Contactor	TINCO
4		Air Switch	TINCO
5		Relay	OMRON
6		PLC	DELTA
7		Proximity Sensor	FEILING
8		Main Motor	CPG(TAIWAN)
9		Knurling motor	RHG
10		Electrothermal AI	ZL104
11		Electric Heater	Stainless steel 304
12	Pneumatic Parts	Connector	AIRTAC
13		Electro magnetic/machenical valve
14		Hand operated valve
15		Throttle valve
16		Air cylinder	Zhejiang YIDA
17	Mechanical Parts	Cam Gear	40Cr Alloy steel
18		Indexing drives	HANDEX	Material: 20CrMnTi
19		Cam bearings	IKO (JAPAN)
20		frame	Cold rolled section steel
21		LM shaft	GCr15 Alloy steel
22		Linear bearing	SAMICK
23		Transmission shaft	40Cr Alloy Steel
24		Knurling part	Cr12MoV Quenching
25		Wheel	Aluminium alloy ZL104
26		Joint bearing	C&U
27		Bearing	C&U
