XC-116

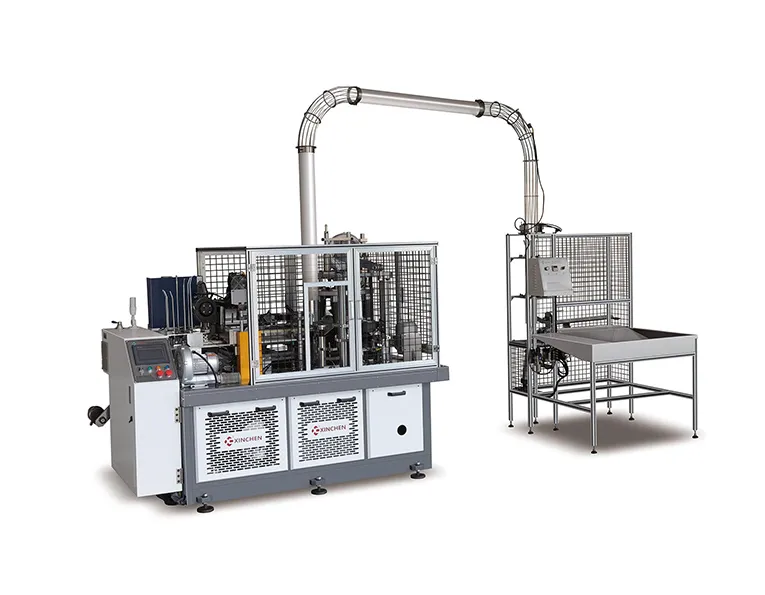

XC-116 Intelligent Paper Cup Making Machine

XC-116 paper cup machine adopts double-layer separation of transmission. The transmission part adopts the horizontal and vertical axis connection transmission structure, and the lubrication is continuously supplied with oil.

Paper cup machine transmission mechanism patent

Patent for mechanical lubrication mechanism of paper cup machine

Capacity	90-120pcs/min
Paper materials	Single PE/double PE
Paper grammage	150-350g/m²

XC-116 Intelligent Paper Cup Making Machine

REQUEST NOW

Description
Technical Parameters
Product Details
Components List

Description

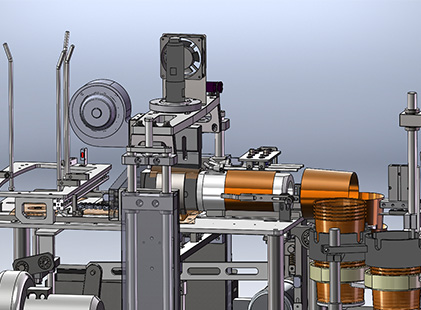

XC-116 intelligent paper cup machine adopts a desktop layout, with double-layer separation of transmission and forming. The transmission part adopts the horizontal and vertical axis connection transmission structure, the gears are transmitted in stages, and the mechanical lubrication is continuously supplied with oil. They are all installed in the frame under the table. The forming mold is assembled above the table to avoid cross-contamination and facilitate cleaning and maintenance. Double turntable structure, the middle turntable can realize the functions of cup mouth silicone oil and waste discharge. The machine adopts PLC and touch screen control, servo feeding and photoelectric detection. It is suitable for the production of 2.5-16oz cold & hot drink cup.

Technical Parameters

Model	XC-116
Machine Weight	2700KG
Wooden case dimension	230014502050mm (LWH)
Rated power	Three-phase，380V,18KW
Compressed air	0.6-0.8MPa，0.4m³/min
Capacity	90-120pcs/min
Paper materials	Single PE/double PE
Paper grammage	150-350g/m²

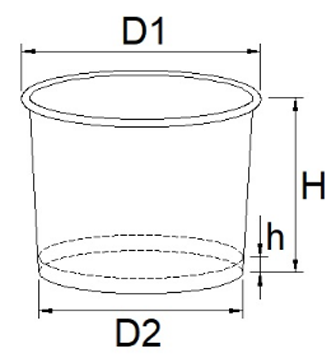

Product range	（D1）φ50-90mm (H)45-135mm
	（D2）φ36-60mm (h)4.5-10mm

Product Details

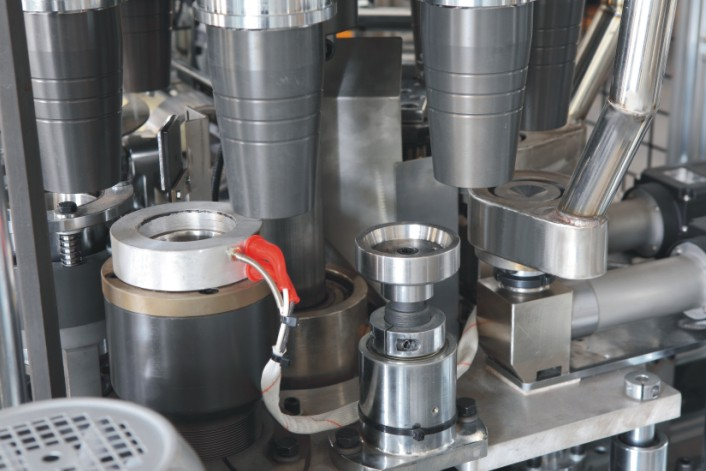

Cup mold

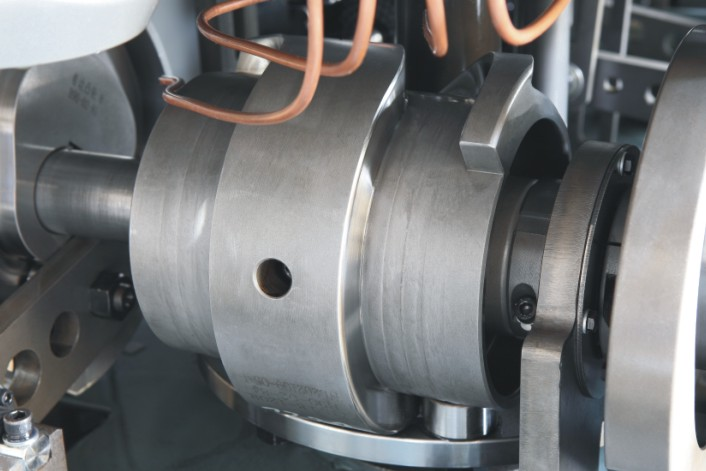

Intermittently divided open cam

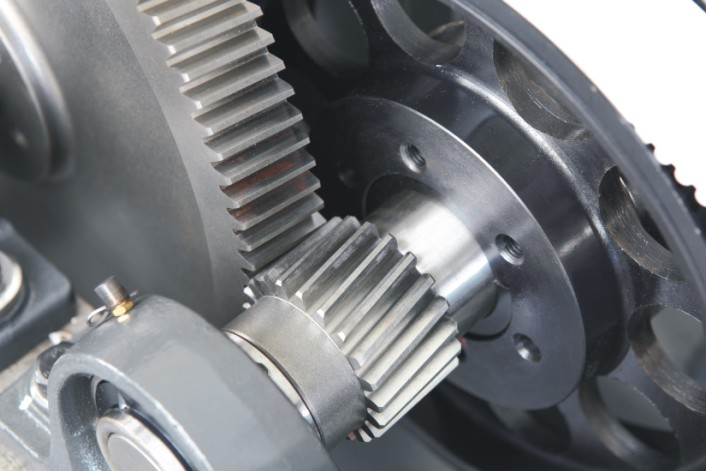

Gear ratio system

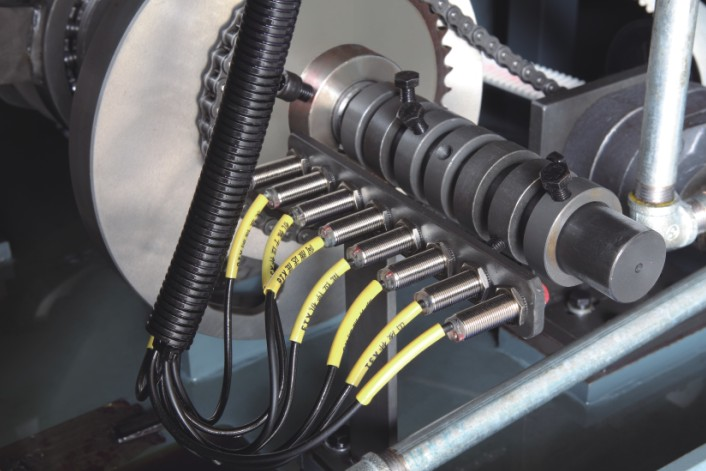

Oil supply system & Signal system

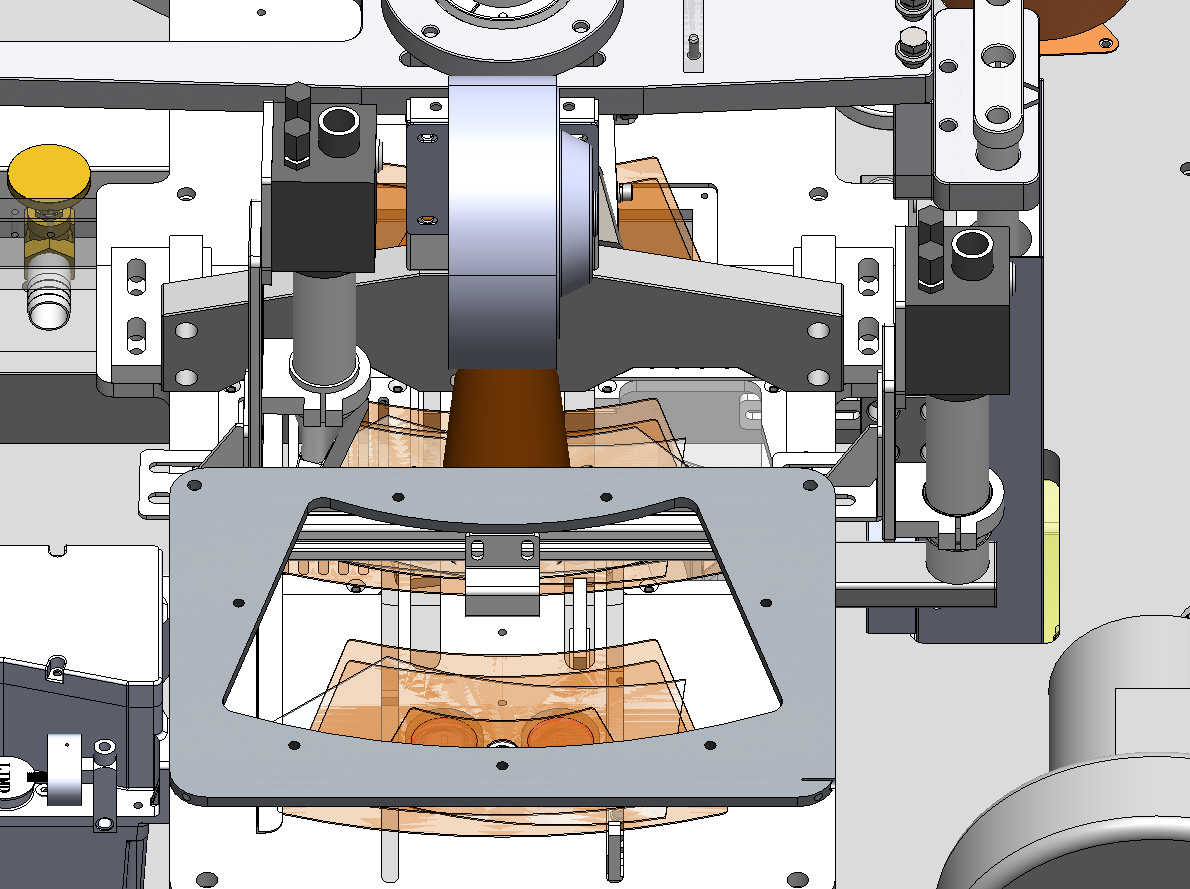

Up and down the hot air

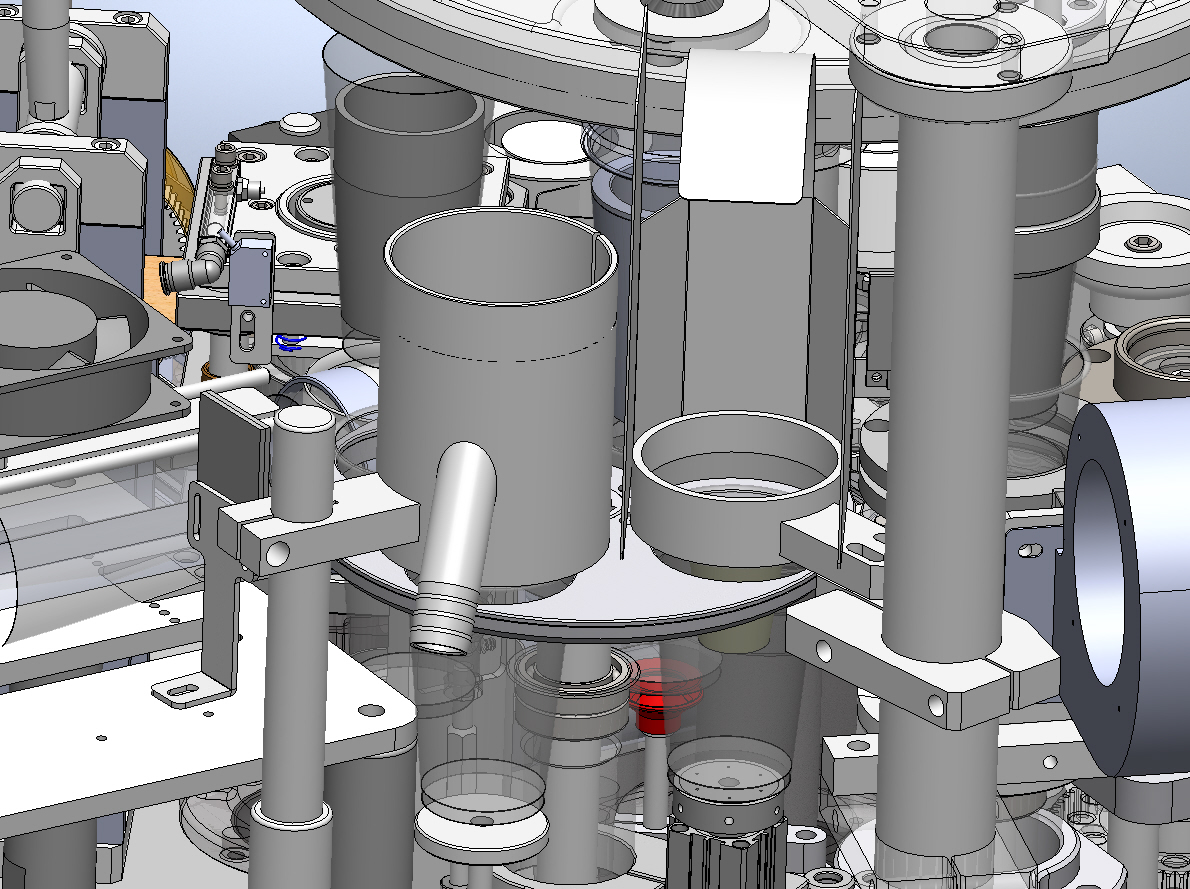

Cup auto collect system

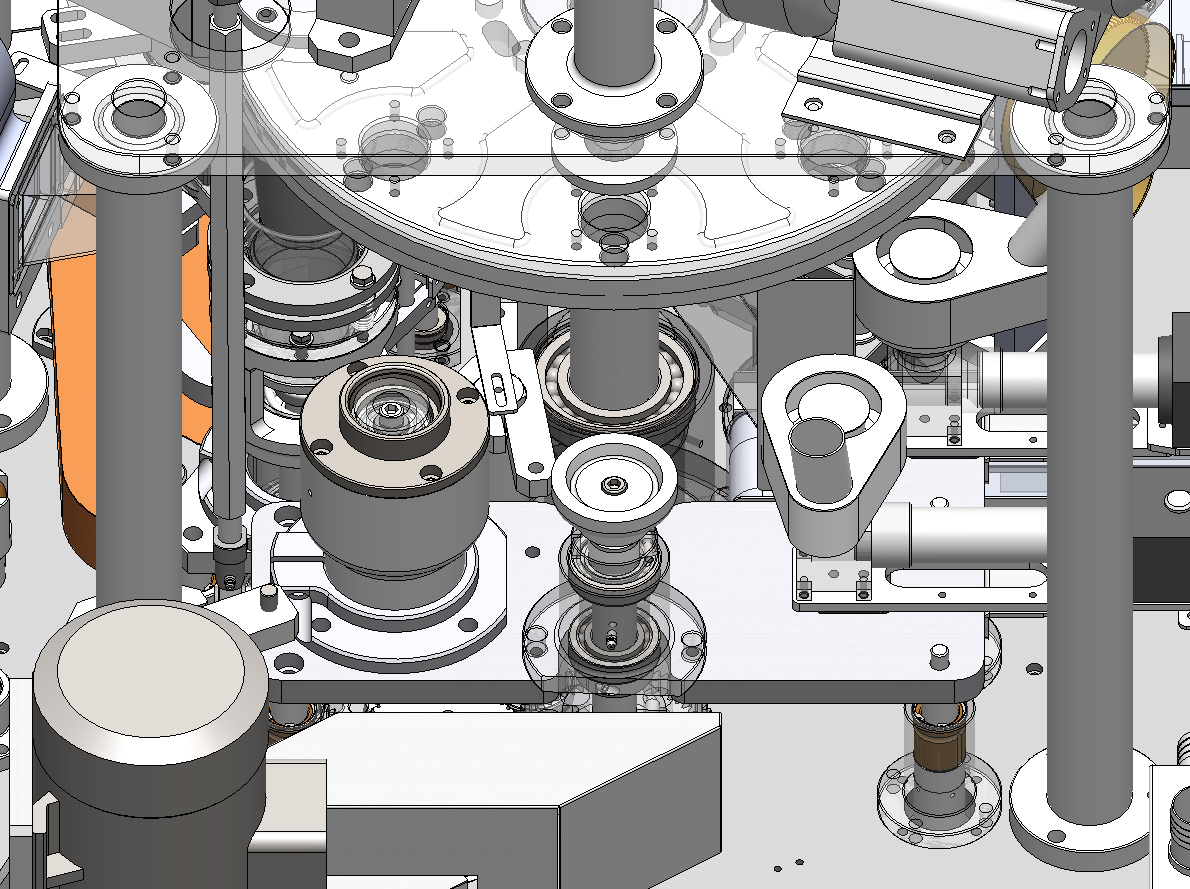

Knurling,rotate roll bottom,bottom heating Ultrasonic sealing

Ultrasonic sealing

Components List

NO.	Item	Name	Brand	Remarks
1	Electrical components	frequency transformer	Delta
2		ultrasonic	ChangRong
3		contactor	Schneider of France
4		servo system	Delta
5		air switch	Chint Electric
6		intermediate relay	Schneider of France
7		Photoelectric / proximity switch	Panasonnic
8		main motor	ZhongLong motor
9		Bottom curling	Unigroup motor
10		Bottom knurling	Unigroup motor
11		High pressure air pump	Gling electrical
12	pneumatic component	quick-change connector	AirTAC pneumatic
13		Solenoid valve / mechanical valve
14		air cylinder
15	machine arrangement	Disk cam	numerical control machining + finish grinding	40Cr forge (azotizing）
16		Disk cam	numerical control machining + finish grinding	20CrMnTi forge (tempering + carburizing and quenching)
17		High-speed intermittent divider	numerical control machining + finish grinding	20CrMnTi forge（tempering + carburizing and quenching）
18		Camshaft bearing	IKO
19		Straight line light axis	GCr15 optic axis（Chrome type）
20		linear guide rail	China famous brand
21		transmission shaft	40Cr tempering
22		Knife mold / roller wheel seat	Cr12MoV quench
23		turntable	aluminium alloy
24		joint bearing	China famous brand
25		bearing	Human bearing/NSK
