XC-100 (2.5-12OZ)

XC-100 Paper Cup Machine

XC-100 vertical single-coated or double-coated paper cup machine is a kind of multi-station automatic machinery.

The shape of the head is oblate,which can seal the cups easily.

Patent for mechanical lubrication mechanism of paper cup machine.

Production speed	90-100pcs/min
Electrical requirement	10KW 380V 50Hz
Weight	2400KG

REQUEST NOW

Description
Technical Parameters
Product Details
Components List

Description

XC-100 vertical single-coated or double-coated paper cup machine is a kind of multi-station automatic machinery. It is the ideal equipment for producing paper test cup, market cup, advertising cup, and ice cream cup by automatic paper feeding, folding sealing, oiling, bottom punching, heating, knurling, curling, paper cup output etc continuous processes.

Advantage and improvement

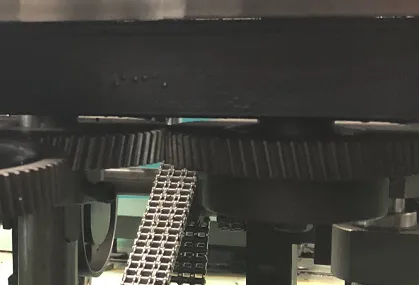

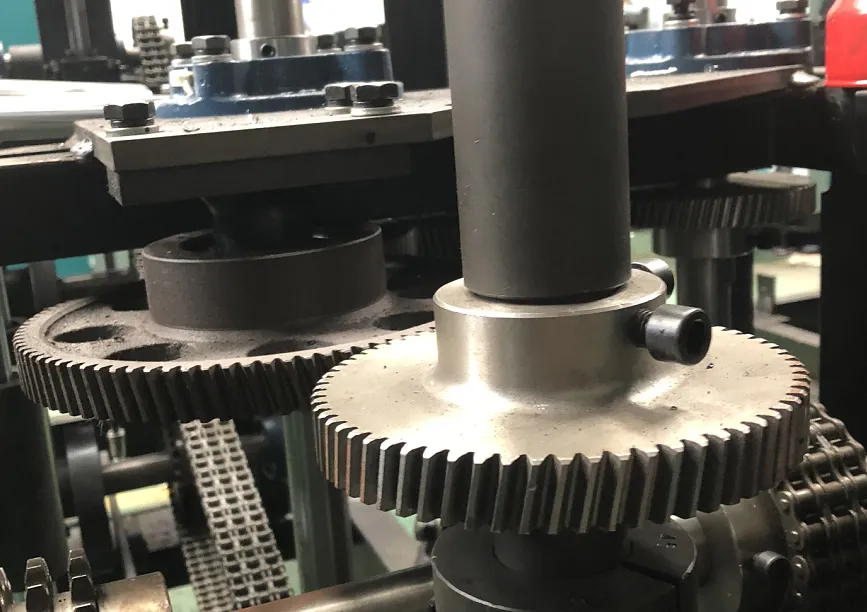

1.Gear drive,more stable running,speed up and reduce the cost of maintenance.

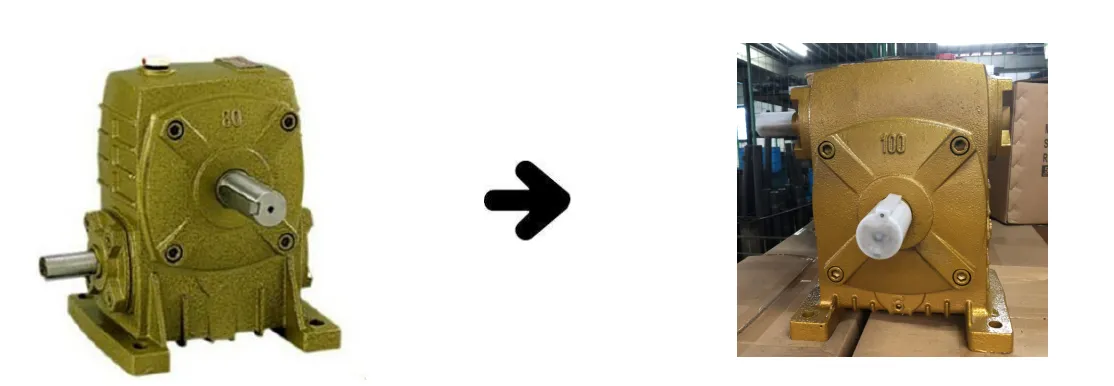

2.100 type speed reducer is used instead 80 type.higher transmission efficiency, better parallelism, sensitivity, and precision for use.

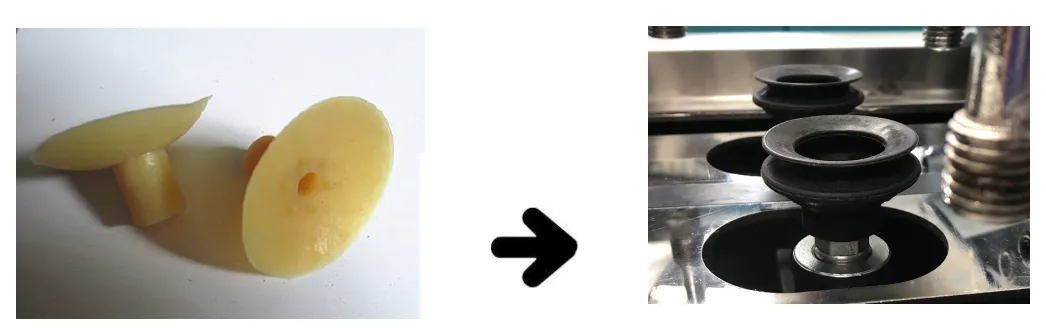

3.Double layer sucker is used for cup fan sucked to guarantee powerful sucking and more successful.The using life is much more longer than normal sucker.

Technical Parameters

Model	XC-100 (2.5-12OZ)

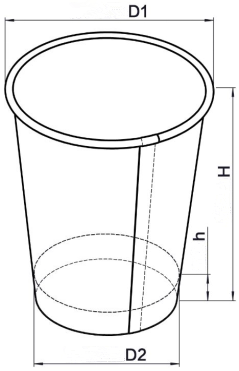

Cup size	(D1) φ 43-85mm (H) 36-115mm (D2) φ 36-62mm (h) 4-9mm
Applicable Paper	150-250g/m² (Single PE) 150-280g/m² (single PE/double PE) with ultrasonic（Optional）
Production speed	90-100pcs/min
Electrical requirement	10KW 380V 50Hz
Compressed air	0.4m³/min ,Air source request (double PE): 0.4-0.6 Mpa
Weight	2400KG
Wooden case dimension	220011001900mm (LWH )

Product Details

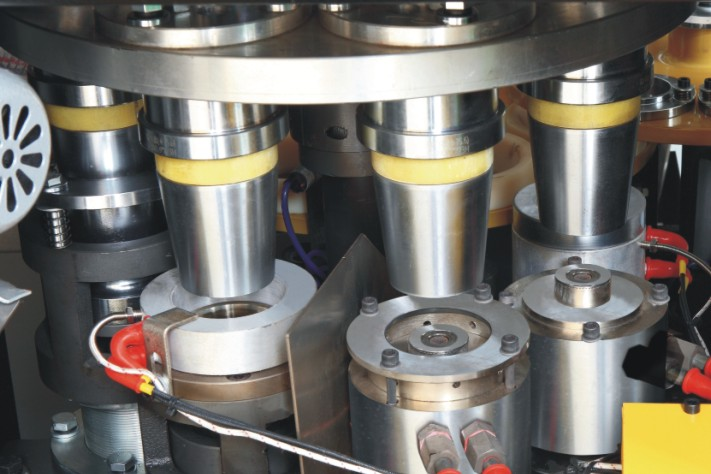

Cup bottom forming

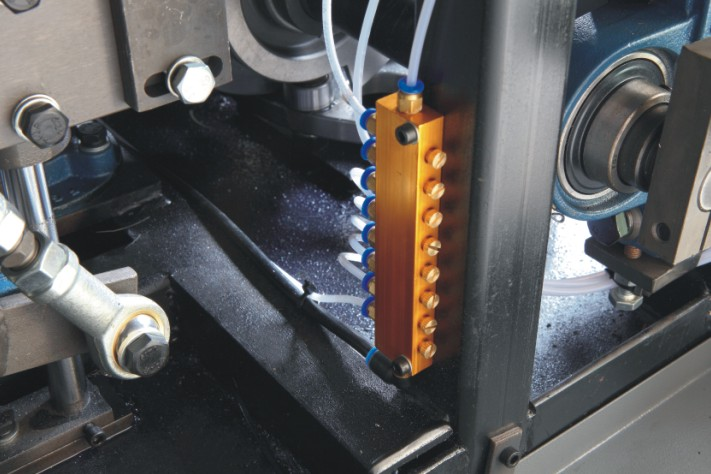

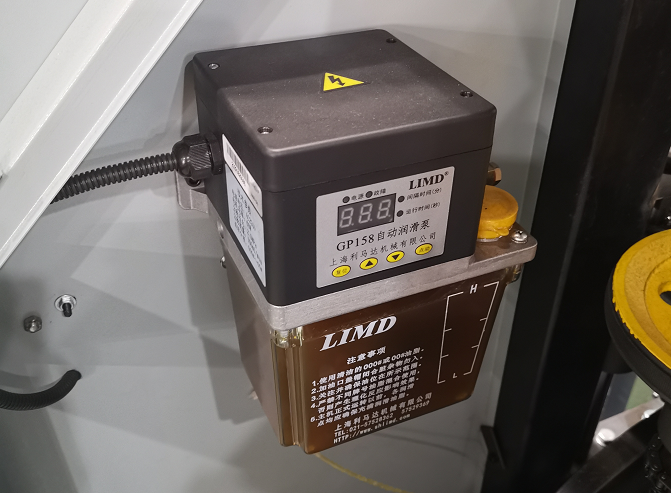

Oil supply and oil distribution system

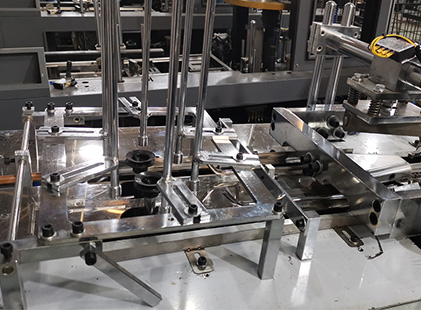

Bottom paper station

Metal baseboard

Open cam
