XC-B70

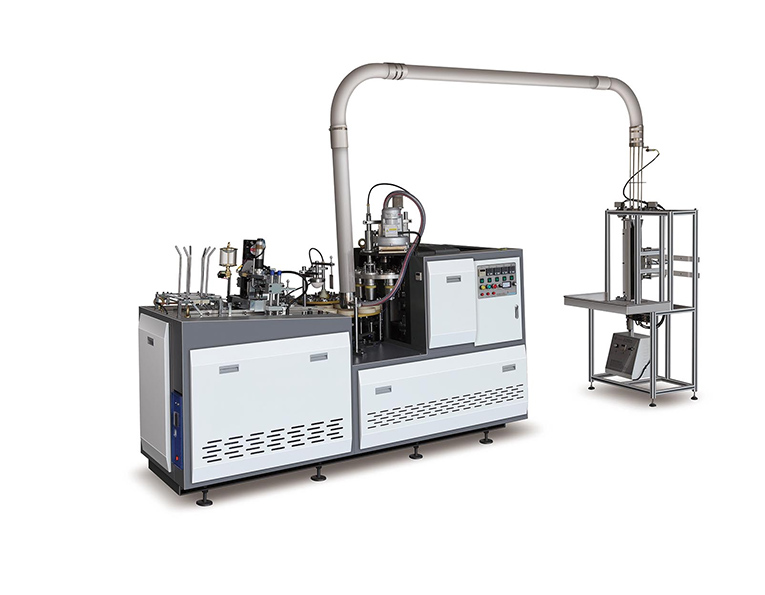

XC-B70 disposablePaper bowl machine

XC-B70 paper bowl machine, use intermittent cam, with automatic paper sending, sealing, oil, bottom punching, it’s suitable for large capacity Large-diameter bowl-shaped container ideal production equipment.

The main-frame of the machine is an incline.And the incline can help the bowls easily drop into the plastic holes,the rate of which goes up to 99.99%.

The shape of the head is oblate,which can seal the bowls easily.It is much better than that is round.

Production speed	75-85pcs/min
Electrical requirement	7.5KW 380V 50Hz
Weight	1600KG

REQUEST NOW

Description
Technical Parameters
Product Details
Components List

Description

XC-B70 vertical single-coated or double-coated film paper bowl machine to use intermittent cam, with automatic paper sending, sealing, oil, bottom punching, two bottom heating, bottom knurling, curling, roll-watering line, bowl output and photoelectric detection, fault alarm function, is a soup bowl, high cold & hot drink cup, instant noodles bowl large capacity Large-diameter bowl-shaped container ideal production equipment.

Advantage and improvement

1.Gear drive,more stable running,speed up and reduce the cost of maintenance.

2.100 type speed reducer is used instead 80 type.higher transmission efficiency, better parallelism, sensitivity, and precision for use.

3.Double layer sucker is used for cup fan sucked to guarantee powerful sucking and more successful.The using life is much more longer than normal sucker.

Technical Parameters

Model	XC-B70
Cup size	(D1) φ 60-125mm (H) 48-135mm (D2) φ 50-99mm (h) 4.5-11mm
paper grammage	150-250g/m² single PE 150-380g/m² single PE/double PE with ultrasonic
Capacity	45-55pcs/min
Rated power	5/9KW 380V 50Hz
Compressed air	0.4m³/min , 0.4-0.6 Mpa
Machine weight	2100 KG
Wooden case dimension	280013001900mm (LWH )

Product Details

Cup mold head

Bottom paper station

Oil supply and oil distribution system
